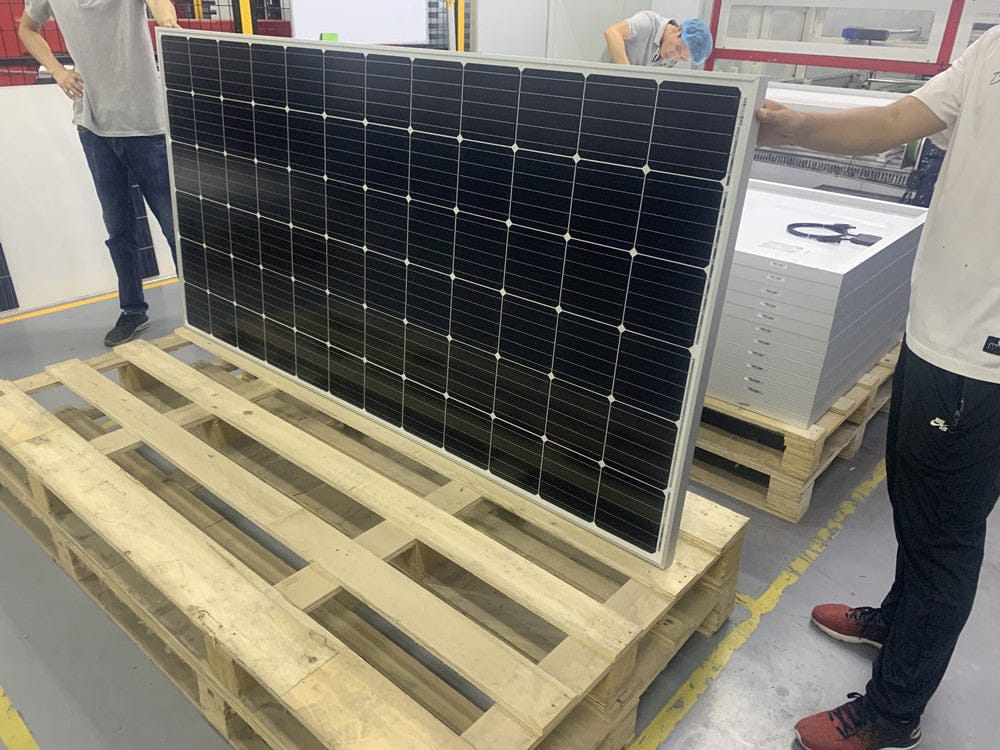

SUNFUTURE 1000W Solar Panel Energy Off Grid Power System
SUNFUTURE 1000W Solar Panel Energy Off Grid Power System
Couldn't load pickup availability
Share
SUNFUTURE 1000W solar panel energy off grid solar power system
- Pure sine wave output, low frequency toroidal transformer lower loss
- Built-in MPPT or PWM controller optional
- Office and public facilities, household system, network transmission equipment
- Provide stable, reliable and safe solutions for 1-40KW solar power system

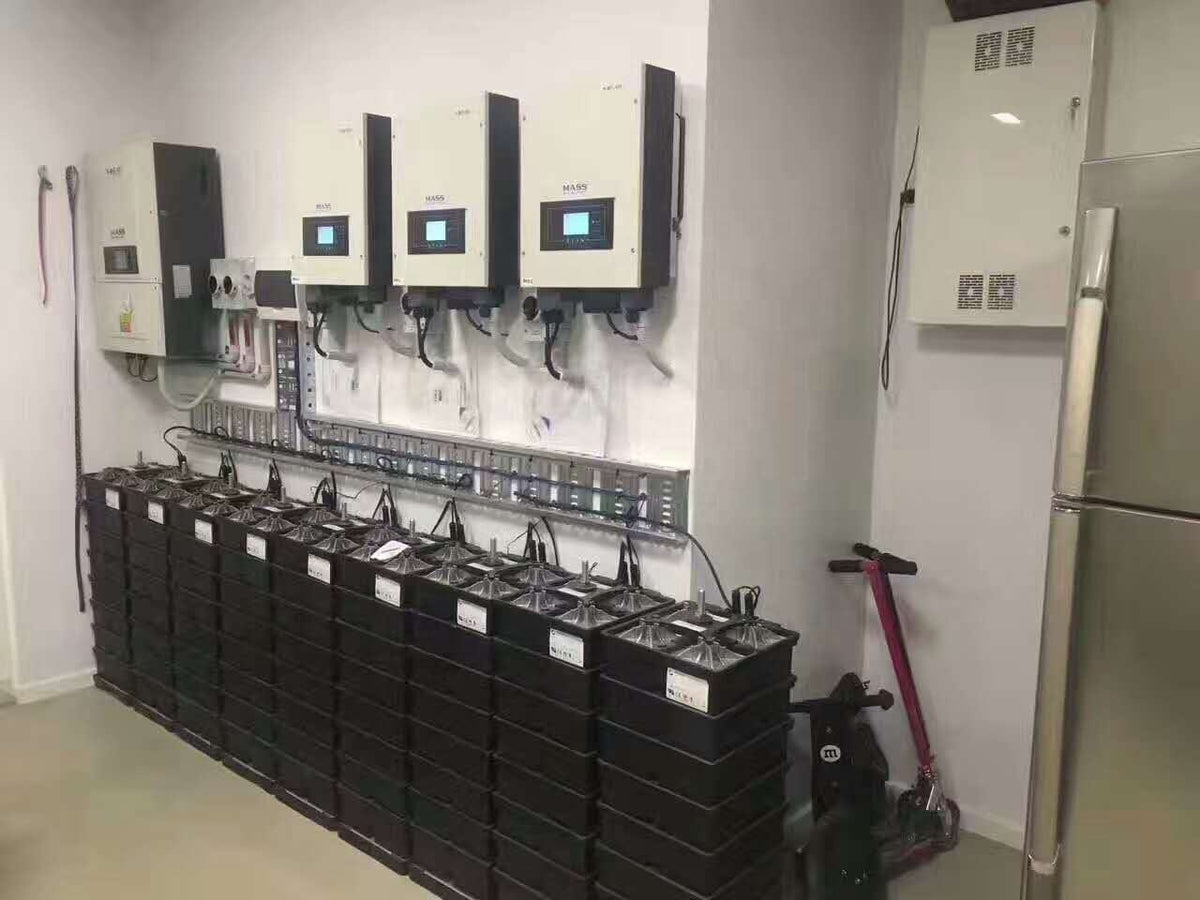

Positive feedback from EU client - Sunfuture 5KW hybrid solar power system

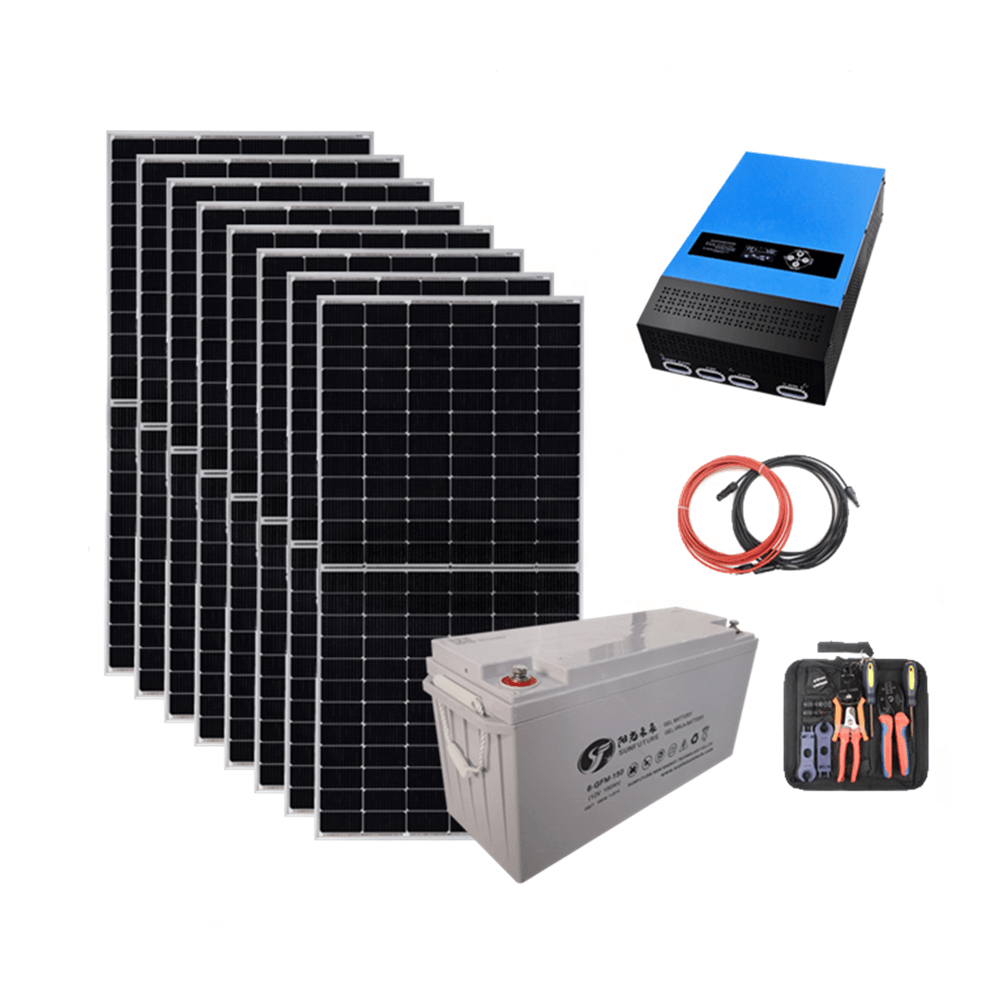

1KW solar energy storage systems configuration

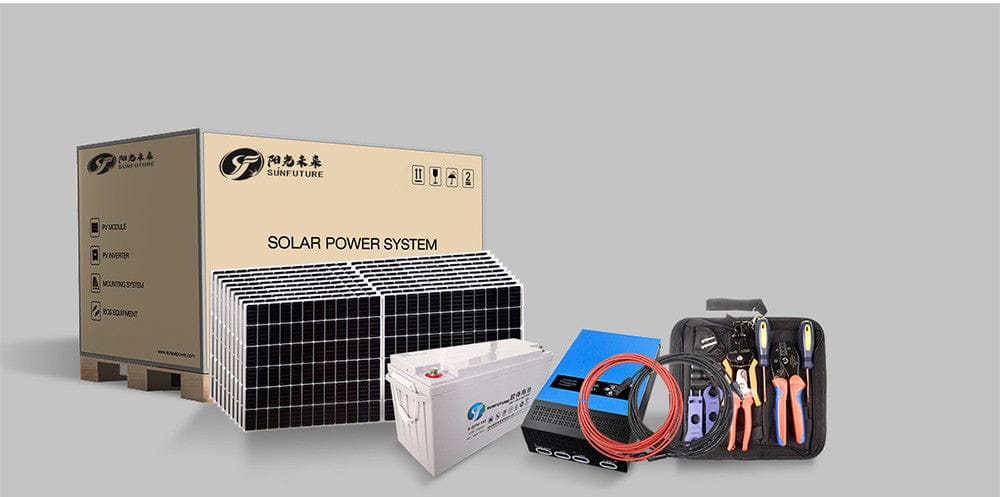

SUNFUTURE offers 1KW-100KW off grid solar power system solution for home use & commercial
PURE SINE WAVE OFF GRID INVERTER
- Pure sine wave output, build in PWM charge controller
- Low frequency toroidal transformer lower loss
- Intelligent LCD integration display
- AC charge current 0~30A adjustable, three working modes selectable
- Added fault code query function, easy to monitor the operation in real time
- Supports diesel or gasoline generator, adapt any tough electricity situation
- Combine industrial and home usage, wall-mounted design, convenient installation
|
Model LW- |
10212/24 |
20212/24/48 |
30224/48 |
40224/48 |
50248 |
60248 |
||
|
Rated power |
1000w |
2000w |
3000w |
4000w |
5000w |
6000w |
||
|
Battery |
Rated voltage |
12/24V |
12/24/48V |
24/48V |
24/48V |
48V |
48V |
|
|
Charge current |
30A(Default)-C0~C6 |
|||||||
|
Input |
voltage range |
85-138VAC / 93-150VAC / 170-275VAC / 186-300VAC |
||||||
|
Frequency |
45-65Hz |
|||||||
|
Output |
Voltage range |
Inverter Output:110VAC / 115VAC/120VAC / 220VAC / 230VAC / 240VAC±2% Mains Output:110VAC /115VAC/ 120VAC / 220VAC / 230VAC / 240VAC±10% |
||||||
|
Frequency |
Inverter Output: 50/60HZ±1% ; Mains Output: Automatic track |
|||||||
|
Efficiency |
≥85% (80% Resistive load) |
|||||||
|
Output waveform |
Pure sine wave |
|||||||
|
Conversion time |
≤4ms(Typical load) |
|||||||
|
Mode |
DC Mode / AC Mode / ECO Mode |
|||||||
|
Display |
LCD |
|||||||
|
Communication |
RS232/RS485(Optional) |
|||||||
|
Cooling method |
Temperature control fan cooling |
|||||||
|
Protection |
Overload / overcurrent / short circuit / over temperature |
|||||||
|
Temperature |
-10℃-40℃ |
|||||||
|
Noise |
≤55dB |
|||||||
|
Machine size: L x W x H |
550*243*175 |
570*261*199 |
||||||
|
Package Size: L x W x H |
605*305*270 |
625*320*295 |
||||||
|
Net weight |
11 |
19 |
20.5 |
22 |
24 |
26 |
||
|
Gross weight |
12.5 |
20.5 |
22 |
24 |
26 |
28 |
||
|
LW-T series built-in PWM controller |
||||||||
|
Rated current |
20A/30A/40A/50A/60A |
|||||||
|
Input voltage range |
12V: 15-50VDC; 24V:30-50VDC; 48V:60-100VDC |
|||||||
|
Maximum input power |
20A:(12V:280w; 24V:560w; ) 30A:(12V:420w; 24V:840w; 48V:1680W) 40A:(12V:560w; 24V:1120w; 48V:2240W) 50A:(12V:700w; 24V:1400w; 48V:2800W) 60A:( 24V:1680w; 48V:3360W) |
|||||||
